Build an All-in-One ESP32 Weather Station Shield

In this project I’ll show you how you can build an all-in-one ESP32 weather station shield and display the sensor readings on a web server. The web server displays data from all the sensors and automatically updates the readings every ten seconds, without the need to refresh the web page.

Watch the Video Tutorial and Project Demo

This guide is available in video format (watch below) and in written format (continue reading).

JLCPCB

The previous video was sponsored by JLCPCB. JLCPCB is a well known PCB prototype company in China. It is specialized in quick PCB prototype and small-batch production. You can order a minimum of 10 PCBs for just $2.

If you want to turn your breadboard circuits into real boards and make your projects look more professional, you just have to upload the Gerber files to order high quality PCBs for low prices. We’ll show you how to do this later in this blog post.

Resources

You can find all the resources needed to build this project in the bullets below.

  • Web server code (for Arduino IDE)
  • HTML page
  • Schematic diagram
  • Gerber files
  • KiCad project to edit the PCB
  • Click here to download all the files

ESP32 Weather Station Shield Features

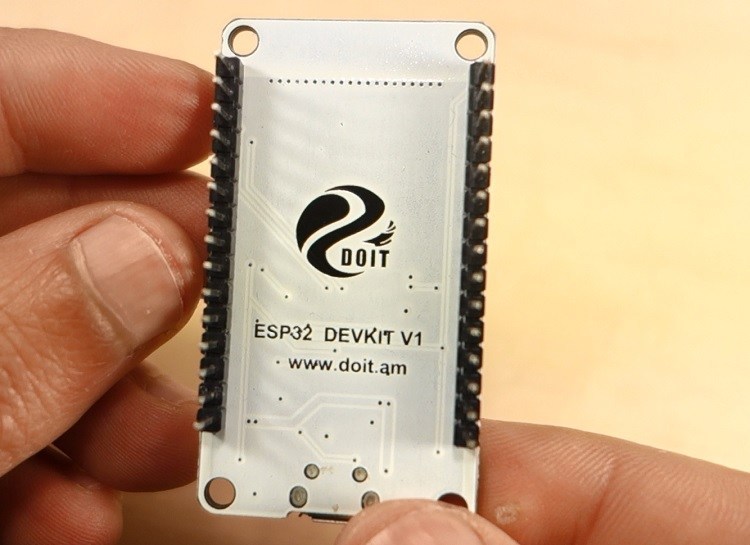

To build this project, I’ve designed a PCB for the ESP32 DEVKIT V1 DOIT board. The PCB I’ve built only works with the version with 30 GPIOs.

I’ve designed the shield to be a compact weather station. The PCB has a lot of features so that it can suit a lot of different projects for different applications. In fact, I didn’t use all the PCB features in this project.

Additionally, this shield can also be used as a learning shield as it comes with some of the most used components when starting to learn how to program the ESP32.

The shield allows you to control:

  • 2x SMD LEDs
  • 1x Pushbutton
  • 1x Trimpot
  • 1x DHT22 temperature and humidity sensor
  • 1x BMP180 barometric sensor
  • 1x Light dependent resistor
  • 1x MicroSD card module
  • 2x Terminal blocks – that give you access to 3 GPIOs to connect other components

The microSD card module is a very interesting addition to the shield: it can be used to store readings if you want to build a data logger, or it can store an HTML file to serve a web page – as we’ll do in this project. I think this is a better and easier way to build a web server that requires more complex web pages.

ESP32 Shield Pin Assignment

The following table describes the pin assignment for each component on the shield:

ComponentESP32 Pin Assignment
PushbuttonGPIO 33
TrimpotGPIO 32
Photoresistor (LDR)GPIO 4
DHT22 data pinGPIO 15
LED1GPIO 27
LED2GPIO 26
BMP180SDA(GPIO 21); SCL(GPIO 22)
SD card moduleMOSI(GPIO 23); MISO(GPIO 19): CLK(GPIO 18); CS(GPIO 5)
Free GPIOs (terminal blocks)GPIO14, GPIO13, GPIO12

Note: there’s a small problem with our pin assignment. Currently the Arduino WiFi library uses GPIO 4 that is connected to the LDR. So, you’ll probably have trouble taking readings from the LDR when you use the WiFi library. To make it work, you can solder a wire from the LDR to another available GPIO (must support ADC).

Testing the Circuit on a Breadboard

Before designing the shield, I’ve assembled the circuit on a breadboard. If you don’t want to make a PCB, you can still follow this project by assembling the circuit on a breadboard.

Parts Required

To assemble the circuit on a breadboard you need the following parts:

  • ESP32 DOIT DEVKIT V1 Board – 30 GPIOs  (read ESP32 development boards comparison)
  • 2x 5mm LED
  • 2x 330 Ohm resistor
  • 1x Pushbutton
  • 1x 10k Ohm resistor
  • 1x 10k Ohm potentiometer
  • 1x DHT22 temperature and humidity sensor
  • 1x BMP180
  • 1x MicroSD card module
  • Breadboard
  • Jumper wires

Schematic

After gathering all the needed parts, you can assemble the circuit by following the next schematic diagram:

Important: if you’re using a different board, you need to double-check the pinout.

Here’s the circuit diagram:

Designing the PCB

After making sure the circuit was working properly, I’ve designed the PCB version on KiCad. KiCad is an open-source software used to design PCBs.

I won’t explore how I’ve designed the PCB, but I provide all the files if you want to modify the PCB for yourself. Click here to download the KiCad project files.

Ordering the PCBs

You don’t need to know how to design the PCB to order one. You just have to:

1. To download the Gerber files, click here to download the .zip file.

2. Go to JLCPCB.com, click the “QUOTE NOW” button, and upload the .zip file you’ve just downloaded.

3. You’ll see a success message at the bottom. Then, you can use the “Gerber Viewer” link at the bottom right corner to check if everything went as expected. You can view the top and bottom of the PCB. You can view or hide the solder-mask, silkscreen, copper, etc.

With the default settings, you can order 10 PCBs for just $2. However, if you want to select other settings like a different PCB Color it will cost you a few more dollars.

When, you’re happy with your order. Click the “SAVE TO CART” button to complete the order.

My PCBs took 1 day to be manufactured and they arrived in 5 business days using DHL delivery option.

Unboxing

After a week, I received my PCBs at my office. Everything came well packed, and I also received a pen from JLCPCB.

Taking a closer look at the PCBs, I must say that I’m really impressed with the quality. I don’t think you can get a better PCB service for this price.

Soldering the Components

The next step was soldering the components to the PCB. I used SMD LEDs and SMD resistors. I know it’s a bit difficult to solder SMD components, but they can save a lot of space on the PCB. I’ve solder header pins to attach the ESP32, and the sensors. This way, I can easily replace the sensors, if needed.

Here’s a list of all the components you need to solder on the PCB:

  • 2x SMD LEDs
  • 2x 330 Ohm SMD resistors
  • 1x 10k Ohm SMD resistor
  • 1x 4.7k Ohm SMD resistor
  • 1x Trimpot (10k)
  • 1x Pushbutton
  • 1x SD card module
  • 1x BMP180 barometric sensor
  • 1x DHT22 temperature and humidity sensor
  • 2x Screw terminal blocks
  • Female pin header socket
  • ESP32 DOIT DEVKIT V1 Board (version with 30 GPIOs) – you can get this board from Banggood, or from eBay

The following figure shows how the PCB looks like after soldering all the components.

Preparing the ESP32 board in Arduino IDE

In order to upload code to your ESP32 using Arduino IDE, you should install an add-on for the Arduino IDE that allows you to program the ESP32 using the Arduino IDE and its programming language. Follow the next tutorial to prepare your Arduino IDE:https://tpc.googlesyndication.com/safeframe/1-0-37/html/container.html

You also need to install the following libraries:

Code

The next step is writing the code to read the sensors and build the web server. The code for this project is divided into two parts:

  • The code in Arduino IDE to read the sensors and host a web server
  • An HTML file to build the web page. This HTML file should be saved in the microSD card.

Copy the code provided to the Arduino IDE. The code for this project is a bit long, but it’s fairly easy to understand. I’ve also added various comments along the code. Don’t upload the code yet.

/*
 * Welcome to gnd_to_vcc!!
 */

// Load required libraries
#include <WiFi.h>
#include "SD.h"
#include "DHT.h"
#include <Wire.h>
#include <Adafruit_BMP085.h>

// Replace with your network credentials
const char* ssid     = "REPLACE_WITH_YOUR_SSID";
const char* password = "REPLACE_WITH_YOUR_PASSWORD";

// uncomment one of the lines below for whatever DHT sensor type you're using
//#define DHTTYPE DHT11   // DHT 11
//#define DHTTYPE DHT21   // DHT 21 (AM2301)
#define DHTTYPE DHT22   // DHT 22  (AM2302), AM2321

// GPIO the DHT is connected to
const int DHTPin = 15;
//intialize DHT sensor
DHT dht(DHTPin, DHTTYPE);

// create a bmp object
Adafruit_BMP085 bmp;

// Web page file stored on the SD card
File webFile;

// Set potentiometer GPIO
const int potPin = 32;

// IMPORTANT: At the moment, GPIO 4 doesn't work as an ADC when using the Wi-Fi library
// This is a limitation of this shield, but you can use another GPIO to get the LDR readings
const int LDRPin = 4;

// variables to store temperature and humidity
float tempC;
float tempF;
float humi;

// Variable to store the HTTP request
String header;

// Set web server port number to 80
WiFiServer server(80);

void setup(){
  // initialize serial port
  Serial.begin(115200);

  // initialize DHT sensor
  dht.begin();

  // initialize BMP180 sensor
  if (!bmp.begin()){
    Serial.println("Could not find BMP180 or BMP085 sensor");
    while (1) {}
  }

  // initialize SD card
  if(!SD.begin()){
      Serial.println("Card Mount Failed");
      return;
  }
  uint8_t cardType = SD.cardType();
  if(cardType == CARD_NONE){
      Serial.println("No SD card attached");
      return;
  }
  // initialize SD card
  Serial.println("Initializing SD card...");
  if (!SD.begin()) {
      Serial.println("ERROR - SD card initialization failed!");
      return;    // init failed
  }

  // Connect to Wi-Fi network with SSID and password
  Serial.print("Connecting to ");
  Serial.println(ssid);
  WiFi.begin(ssid, password);

  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }

  // Print local IP address and start web server
  Serial.println("");
  Serial.println("WiFi connected.");
  Serial.println("IP address: ");
  Serial.println(WiFi.localIP());
  server.begin();
}

void loop(){
  WiFiClient client = server.available();   // Listen for incoming clients

  if (client) {  // if new client connects
    boolean currentLineIsBlank = true;
    while (client.connected()) {
      if (client.available()) {   // client data available to read
        char c = client.read(); // read 1 byte (character) from client
        header += c;
        // if the current line is blank, you got two newline characters in a row.
        // that's the end of the client HTTP request, so send a response:
        if (c == '\n' && currentLineIsBlank) {
          // send a standard http response header
          client.println("HTTP/1.1 200 OK");
          // Send XML file or Web page
          // If client already on the web page, browser requests with AJAX the latest
          // sensor readings (ESP32 sends the XML file)
          if (header.indexOf("update_readings") >= 0) {
            // send rest of HTTP header
            client.println("Content-Type: text/xml");
            client.println("Connection: keep-alive");
            client.println();
            // Send XML file with sensor readings
            sendXMLFile(client);
          }
          // When the client connects for the first time, send it the index.html file
          // stored in the microSD card
          else {
            // send rest of HTTP header
            client.println("Content-Type: text/html");
            client.println("Connection: keep-alive");
            client.println();
            // send web page stored in microSD card
            webFile = SD.open("/index.html");
            if (webFile) {
              while(webFile.available()) {
                // send web page to client
                client.write(webFile.read());
              }
              webFile.close();
            }
          }
          break;
        }
        // every line of text received from the client ends with \r\n
        if (c == '\n') {
          // last character on line of received text
          // starting new line with next character read
          currentLineIsBlank = true;
        }
        else if (c != '\r') {
          // a text character was received from client
          currentLineIsBlank = false;
        }
        } // end if (client.available())
    } // end while (client.connected())
    // Clear the header variable
    header = "";
    // Close the connection
    client.stop();
    Serial.println("Client disconnected.");
  } // end if (client)
}

// Send XML file with the latest sensor readings
void sendXMLFile(WiFiClient cl){
  // Read DHT sensor and update variables
  readDHT();

  // Prepare XML file
  cl.print("<?xml version = \"1.0\" ?>");
  cl.print("<inputs>");

  cl.print("<reading>");
  cl.print(tempC);
  cl.println("</reading>");

  cl.print("<reading>");
  cl.print(tempF);
  cl.println("</reading>");

  cl.print("<reading>");
  cl.print(humi);
  cl.println("</reading>");

  float currentTemperatureC = bmp.readTemperature();
  cl.print("<reading>");
  cl.print(currentTemperatureC);
  cl.println("</reading>");
  float currentTemperatureF = (9.0/5.0)*currentTemperatureC+32.0;
  cl.print("<reading>");
  cl.print(currentTemperatureF);
  cl.println("</reading>");

  cl.print("<reading>");
  cl.print(bmp.readPressure());
  cl.println("</reading>");

  cl.print("<reading>");
  cl.print(analogRead(potPin));
  cl.println("</reading>");

  // IMPORTANT: Read the note about GPIO 4 at the pin assignment
  cl.print("<reading>");
  cl.print(analogRead(LDRPin));
  cl.println("</reading>");

  cl.print("</inputs>");
}

void readDHT(){
  // Sensor readings may also be up to 2 seconds 'old' (its a very slow sensor)
  humi = dht.readHumidity();
  // Read temperature as Celsius (the default)
  tempC = dht.readTemperature();
  // Read temperature as Fahrenheit (isFahrenheit = true)
  tempF = dht.readTemperature(true);

  // Check if any reads failed and exit early (to try again).
  if (isnan(humi) || isnan(tempC) || isnan(tempF)) {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }

  /*Serial.print("Humidity: ");
  Serial.print(humi);
  Serial.print(" %\t Temperature: ");
  Serial.print(tempC);
  Serial.print(" *C ");
  Serial.print(tempF);
  Serial.println(" *F");*/
}

Before uploading the code, you need to modify the following lines to add your SSID and password.

// Replace with your network credentials
const char* ssid = "REPLACE_WITH_YOUR_SSID";
const char* password = "REPLACE_WITH_YOUR_PASSWORD";

Then, press the upload button to upload the sketch to your ESP32. Make sure you have the right board and COM port selected.

Create a new file using a text editor, and copy the following code. Alternatively, you can click here to download the index.html file.

<!DOCTYPE html>
<html>
  <head>
    <title>ESP32 Weather Station</title>
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <link rel="icon" href="data:,">
    <script>
      function DisplayCurrentTime() {
          var date = new Date();
          var hours = date.getHours() < 10 ? "0" + date.getHours() : date.getHours();
          var minutes = date.getMinutes() < 10 ? "0" + date.getMinutes() : date.getMinutes();
          var seconds = date.getSeconds() < 10 ? "0" + date.getSeconds() : date.getSeconds();
          time = hours + ":" + minutes + ":" + seconds;
          var currentTime = document.getElementById("currentTime");
          currentTime.innerHTML = time;
      };
      function GetReadings() {
      	nocache = "&nocache";
      	var request = new XMLHttpRequest();
      	request.onreadystatechange = function() {
    			if (this.status == 200) {
    				if (this.responseXML != null) {
    					// XML file received - contains sensor readings
    					var count;
    					var num_an = this.responseXML.getElementsByTagName('reading').length;
    					for (count = 0; count < num_an; count++) {
    						document.getElementsByClassName("reading")[count].innerHTML =
    					  this.responseXML.getElementsByTagName('reading')[count].childNodes[0].nodeValue;
    					}
    				}
    			}
      	}
      	// Send HTTP GET request to get the latest sensor readings
      	request.open("GET", "?update_readings" + nocache, true);
      	request.send(null);
        DisplayCurrentTime();
        setTimeout('GetReadings()', 10000);
      }
      document.addEventListener('DOMContentLoaded', function() {
        DisplayCurrentTime();
        GetReadings();
      }, false);
    </script>
    <style>
      body {
        text-align: center;
        font-family: "Trebuchet MS", Arial;
      }
      table {
        border-collapse: collapse;
        width:60%;
        margin-left:auto;
        margin-right:auto;
      }
      th {
        padding: 16px;
        background-color: #0043af;
        color: white;
      }
      tr {
        border: 1px solid #ddd;
        padding: 16px;
      }
      tr:hover {
        background-color: #bcbcbc;
      }
      td {
        border: none;
        padding: 16px;
      }
      .sensor {
        color:white;
        font-weight: bold;
        background-color: #bcbcbc;
        padding: 8px;
      }
    </style>
  </head>
  <body>
    <h1>ESP32 Weather Station</h1>
    <h3>Last update: <span id="currentTime"></span></h3>
    <table>
      <tr>
        <th>SENSOR</th>
        <th>MEASUREMENT</th>
        <th>VALUE</th>
      </tr>
      <tr>
        <td><span class="sensor">DHT</span></td>
        <td>Temp. Celsius</td>
        <td><span class="reading">...</span> *C</td>
      </tr>
      <tr>
        <td><span class="sensor">DHT</span></td>
        <td>Temp. Fahrenheit</td>
        <td><span class="reading">...</span> *F</td>
      </tr>
      <tr>
        <td><span class="sensor">DHT</span></td>
        <td>Humidity</td>
        <td><span class="reading">...</span> %</td>
      </tr>
      <tr>
        <td><span class="sensor">BMP180</span></td>
        <td>Temp. Celsius</td>
        <td><span class="reading">...</span> *C</td>
      </tr>
      <tr>
        <td><span class="sensor">BMP180</span></td>
        <td>Temp. Fahrenheit</td>
        <td><span class="reading">...</span> *F</td>
      </tr>
      <tr>
        <td><span class="sensor">BMP180</span></td>
        <td>Pressure</td>
        <td><span class="reading">...</span> Pa</td>
      </tr>
      <tr>
        <td><span class="sensor">POT</span></td>
        <td>Position</td>
        <td><span class="reading">...</span>/4095</td>
      </tr>
      <tr>
        <td><span class="sensor">LDR</span></td>
        <td>Luminosity</td>
        <td><span class="reading">...</span>/4095</td>
      </tr>
    </table>
  </body>
</html>

This is HTML, and it will build your web page. In this file you can change how your web page looks, the headings, the table, etc… The ESP32 will send this HTML text to your browser when you make an HTTP request on the ESP32 IP address.

Save the file as index.html. Copy the HTML file to your microSD card, and insert the microSD card into the SD card module.

Now, everything should be ready.

Testing the ESP32 Weather Station Shield Web Server

Open the serial monitor at a baud rate of 115200, and check the ESP32 IP address.https://tpc.googlesyndication.com/safeframe/1-0-37/html/container.html

By the end of the project, you have your own ESP32 weather station web server, and all the hardware is well compacted on a PCB.

Open your browser, type the IP address and you should see a table with the latest sensor readings. The web server displays the DHT22, BMP180, potentiometer and LDR readings. The readings are updated every 10 seconds without the need to refresh the web page.

https://tpc.googlesyndication.com/safeframe/1-0-37/html/container.html

To update the readings without refreshing the web page, we use AJAX. As you can read here, AJAX is a developer’s dream, because it can update the web page without reloading the page, request and receive data from a server, after the page has loaded, and send data to a server in the background.

Taking it Further

There’s still room to improve this project, you can use the extra terminals to connect other sensors or a relay. You can also program the ESP32 to trigger an event when a reading is below or above a certain threshold. The idea is that you modify the code provided to use the shield in a way that meets your own specific needs.

If you want to get your own all-in-one ESP32 weather station shield, you just need to upload the .zip file with the Gerber files to the JLCPCB website. You’ll get high quality PCBs for a very reasonable price.

Wrapping Up

I’m giving away 3 bare PCBs to someone that posts a comment below! [Update] the giveaway ended and the winners are: Horváth Balázs, Sayandeep Nayak, and Achim Kern.

We hope you’ve found this project useful. If you liked this project you may also like other related projects:

Thanks for reading.

Advertisement

Published by Gnd_To_Vcc

Here to spread my knowledge . Knowledge should always be spread not stored.

9 thoughts on “Build an All-in-One ESP32 Weather Station Shield

Leave a Reply

Fill in your details below or click an icon to log in:

WordPress.com Logo

You are commenting using your WordPress.com account. Log Out /  Change )

Twitter picture

You are commenting using your Twitter account. Log Out /  Change )

Facebook photo

You are commenting using your Facebook account. Log Out /  Change )

Connecting to %s

%d bloggers like this:
